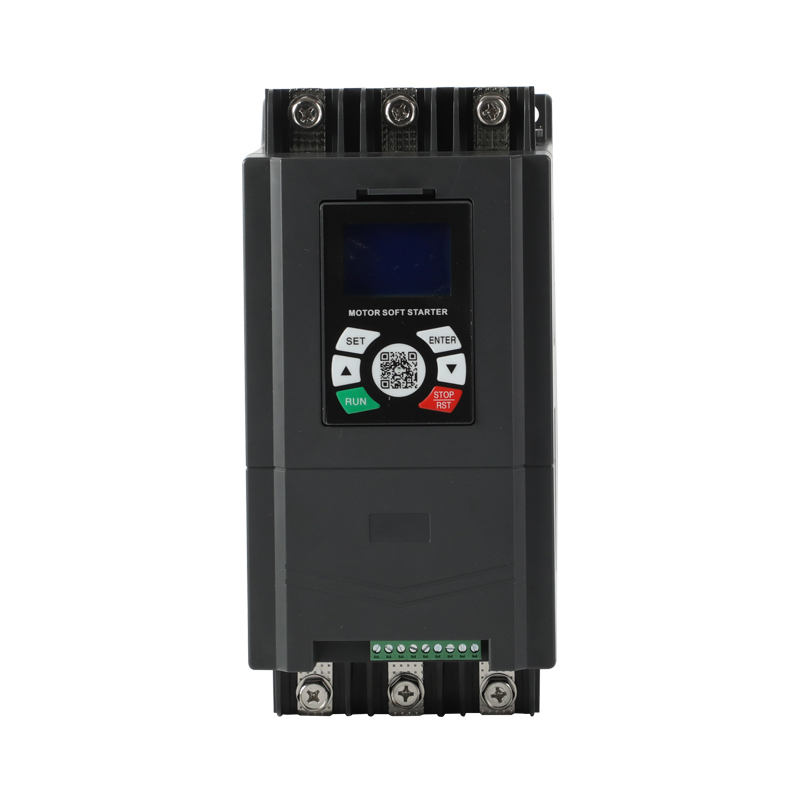

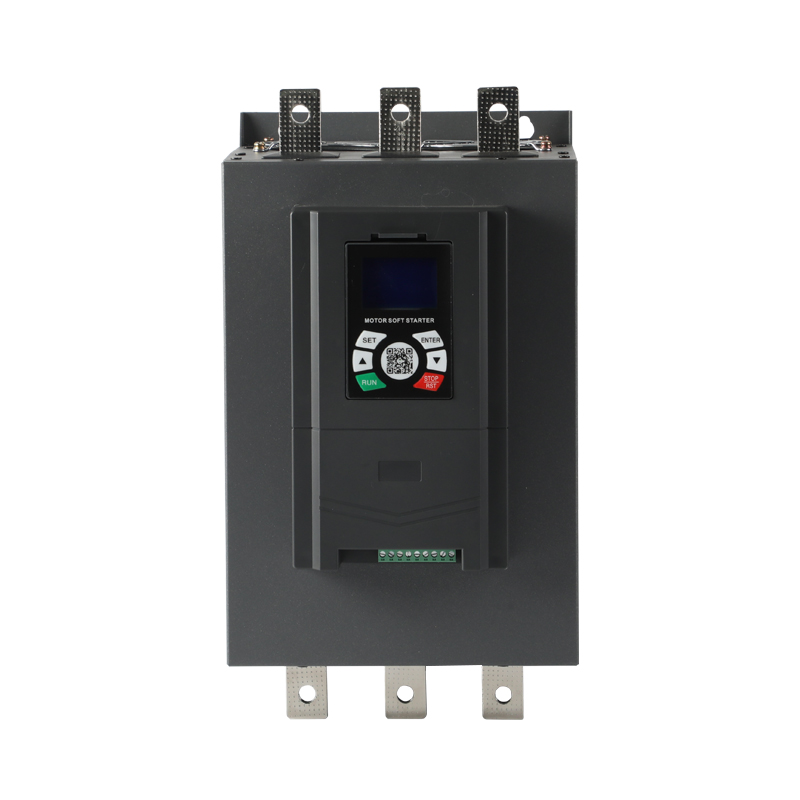

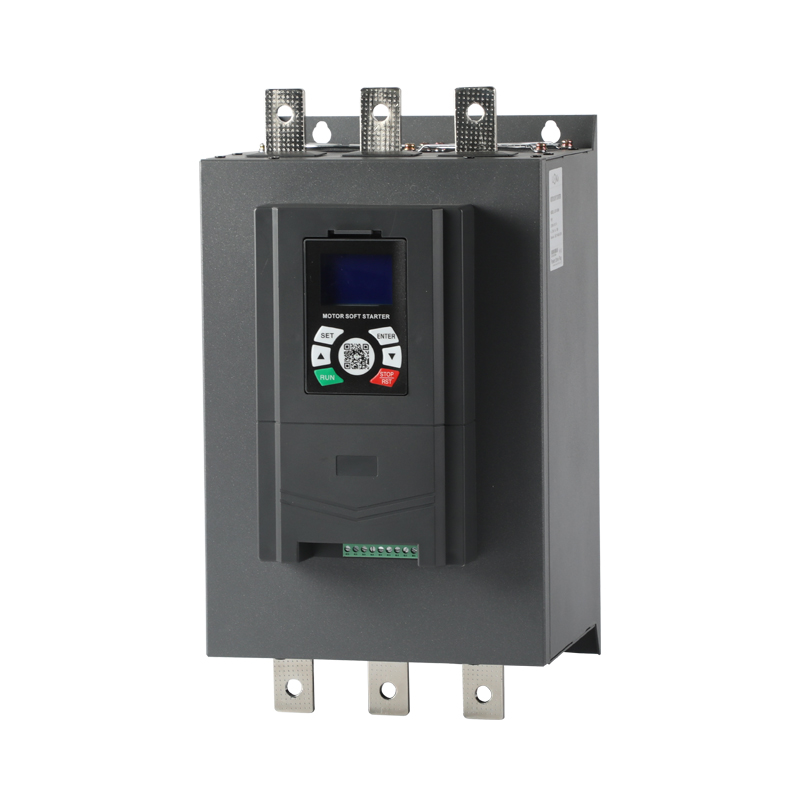

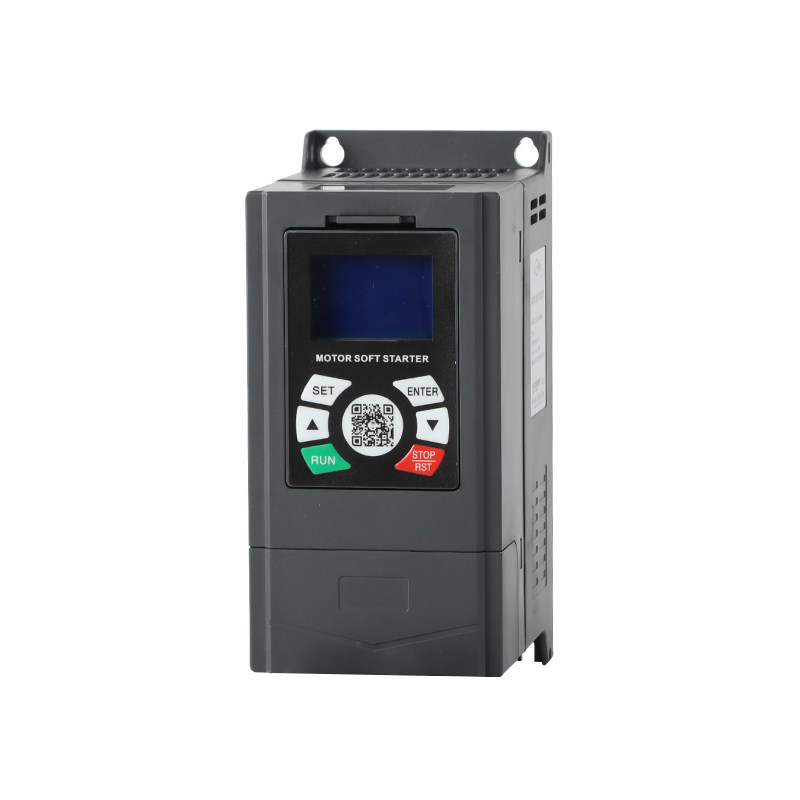

LCRVM-C Series Online Soft Starter
Product overview
The online soft starter adopts the silicon control full-time online structure design of three wires input and three wires output. Inside, there is high-power air-cooled radiator and high-speed axial fan to ensure the stable and reliable operation of the soft start for a long time, and the cabinet does not need external AC contactor. This type of soft starter has the advantages of small size, relatively cheap for the cost of the secondary complete set, and deeply loved by users, and it is one of the best-selling products of our company. Its disadvantage is that it is necessary to consider the ventilation and heat dissipation in the cabinet when using it, and it only can be matched with the single motor.
Specification of LCRVM-C Online Soft Starter
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
VM1-5.5/11C |
1.2 |
VM1
Product: 205*96*140 Installation: 240*107 Package: 245*130*180 Carton: 8pcs/ctn VM2 Product: 270*130*175 Installation: 188*75 Package: 320*180*230 Carton: 2 or 6pcs/ctn VM3 Product: 370*210*245 Installation: 320*150 Package: 430*285*265 Carton: 2pcs/ctn VM4 Product: 410*260*235 Installation: 375*228 Package: 500*275*320 Carton: 1pc/ctn VM5 Product: 460*300*255 Installation: 425*266 Package: 560*340*330 Carton: 1pc/ctn VM6 Product: 510*400*275 Installation: 475*352 Package: 630*460*370 Carton: 1pc/ctn Opening dimensions of panel: H120*W78 |
|
2 |
VM1-15/18.5C |
1.2 |
|
|
3 |
VM2-22C |
3.05 |
|
|
4 |
VM2-30C |
3.1 |
|
|
5 |
VM2-37C |
3.15 |
|
|
6 |
VM2-45C |
3.2 |
|
|
7 |
VM2-55C |
3.4 |
|
|
8 |
VM2-75C |
3.4 |
|
|
9 |
VM3-90C |
8.95 |
|
|
10 |
VM3-115C |
8.95 |
|
|
11 |
VM4-132C |
14.4 |
|
|
12 |
VM4-160C |
14.65 |
|
|
13 |
VM4-185C |
14.9 |
|
|
14 |
VM4-200C |
14.9 |
|
|
15 |
VM4-220C |
14.9 |
|
|
16 |
VM5-250C |
23.4 |
|
|
17 |
VM5-280C |
23.5 |
|
|
18 |
VM5-320C |
23.7 |
|
|
19 |
VM5-350C |
24.2 |
|
|
20 |
VM6-400C |
30.35 |
|
|
21 |
VM6-450C |
34.35 |
|
|
22 |
VM6-500C |
34.5 |
Intelligent control
It only can match the single motor, and can support the centralized control of multi-machine parallel networking to improve the management and operation efficiency of equipment.
Reduce the impact
Realize the no-impact acceleration of the motor, effectively reduce the motor and equipment wear in the starting process, and prolong the service life of the motor and equipment.
Lean complete equipment
The motor starts and runs, adopting the silicon control full-time online structure design, so the complete equipment does not need the external connection to AC contactor. The online soft starter volume is small, the cabinet is simple, and the peripheral cost is cheap.
Main Technical Parameters
Power range: 5.5-500kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V, AC1140V, 60 Hz
Partial Display
External Wiring
