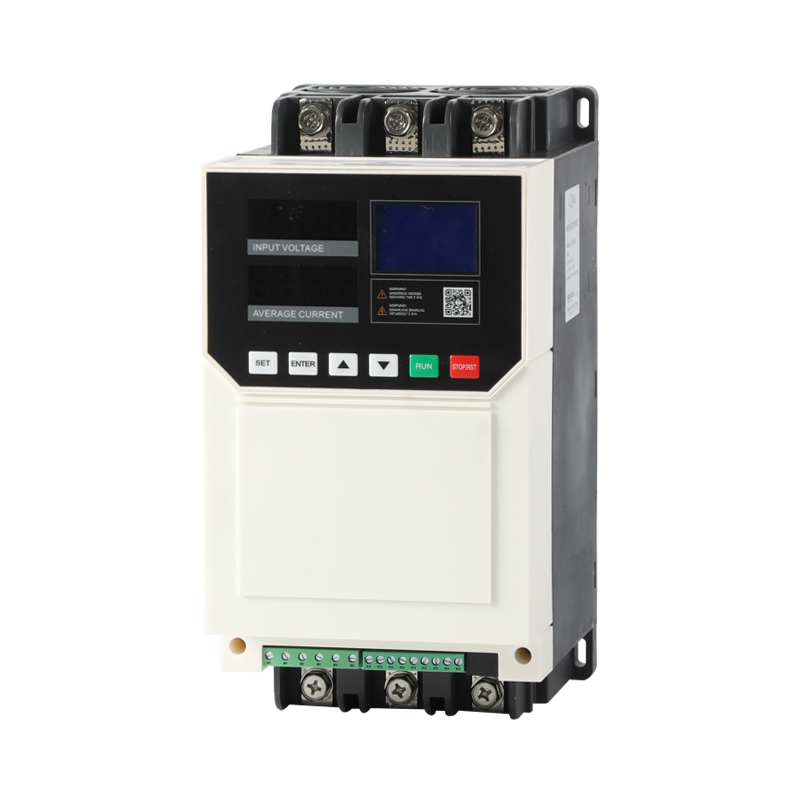

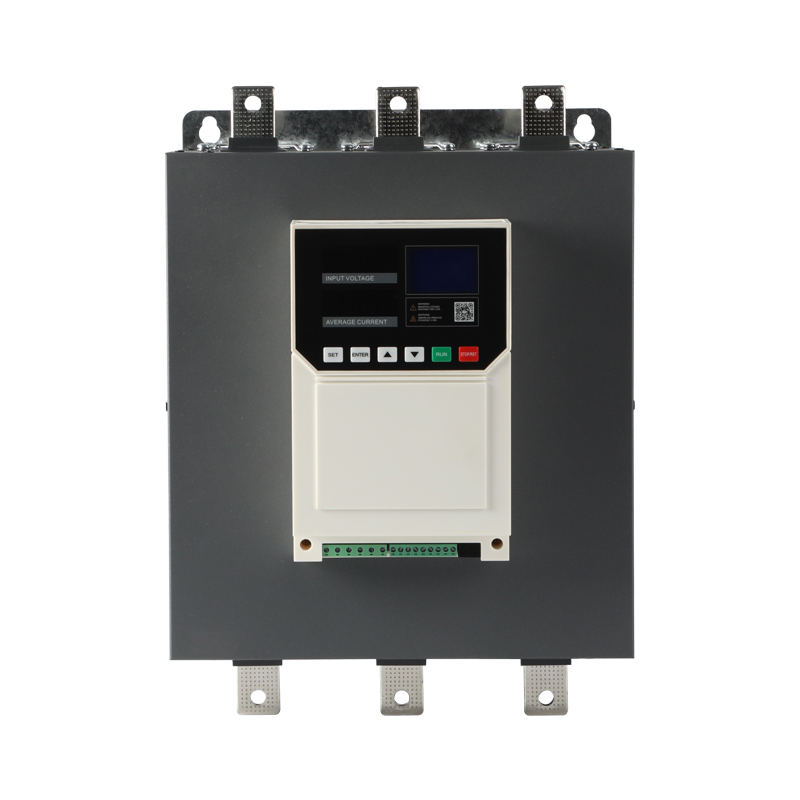

LCRV6-E Built-in Bypass Soft Starter
Product overview
LCRV6-E Built-in bypass soft starter itself contains a bypass contactor, when we designed it. It will through the relay control the running of the inside dc contactor to replace the thyristor that has completed the start-up task, and offer full voltage for the normal operation of the motor to cut down the heat loss of thyristor, when the motor comes to the rated speed. The advantage of LCRV6-E motor soft starter is that the installation and wiring of the motor soft starter are simple, and requires little space of the cabinet. The disadvantage of LCRV6-E motor soft starter is that the price is relatively high and you should properly consider the ventilation and heat dissipation in the cabinet when use it. Finally, LCRV6-E motor soft starter only can match with the single motor to use.
Specification of LCRV6-E Built-in Bypass Soft Starter
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
I-V6-22E |
5.4 |
Frame I Product: 285*150*195 Installation: 255*135 Package: 335*195*235 Carton: 4pcs/ctn Frame II Product: 370*210*245 Installation: 325*150 Package: 455*260*300 Carton: 2pcs/ctn Frame III Product: 450*260*255 Installation: 475*228 Package: 590*315*350 Carton: 1pc/ctn Frame IV Product: 525*300*275 Installation: 550*266 Package: 685*345*385 Carton: 1pc/ctn Frame V Product: 570*400*295 Installation: 595*352 Package: 760*450*40 Carton: 1pc/ctn Opening dimensions of panel: H112*W88 |
|
2 |
I-V6-30E |
5.4 |
|
|
3 |
I-V6-37E |
5.4 |
|
|
4 |
I-V6-45E |
5.4 |
|
|
5 |
I-V6-55E |
5.5 |
|
|
6 |
I-V6-75E |
5.7 |
|
|
7 |
II-V6-90E |
9.5 |
|
|
8 |
II-V6-115E |
10.35 |
|
|
9 |
II-V6-132E |
22.8 |
|
|
10 |
III-V6-160E |
22.8 |
|
|
11 |
III-V6-185E |
22.8 |
|
|
12 |
III-V6-200E |
22.8 |
|
|
13 |
III-V6-220E |
22.8 |
|
|
14 |
IV-V6-250E |
33.1 |
|
|
15 |
IV-V6-280E |
33.1 |
|
|
16 |
IV-V6-320E |
33.1 |
|
|
17 |
IV-V6-350E |
33.1 |
|
|
18 |
V-V6-400E |
50 |
|
|
19 |
V-V6-450E |
50 |
|
|
20 |
V-V6-500E |
50 |
Intelligent control
LCRV6-E built-in bypass soft starter we push to the international market, it can achieve the operation of multiple motors controlled by one LCRV6-E built-in bypass soft starter, and LCRV6-E built-in bypass soft starter can sustain the centralized control of multi-machine parallel networking, and at the same time promote the management and operation efficiency of electrical control panel.
Reduce the impact
LCRV6-E built-in bypass soft starter can achieve the impact-free acceleration of the motor, effectively cut down the motor and equipment wear in the start-up process, and extend the service life of the motor and electrical control panel.
Energy conservation and consumption reduction
The current passes through the bypass contactor loop, when the motor is in the normal operation, which can reduce the energy loss of components inside LCRV6-E built-in bypass soft starter, so this type of LCRV6-E built-in bypass soft starter has a good energy saving effect and can cut down the electricity cost of users.
Main Technical Parameters
Power range: 22-1250kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V, AC1140V, 60 Hz
Partial Display

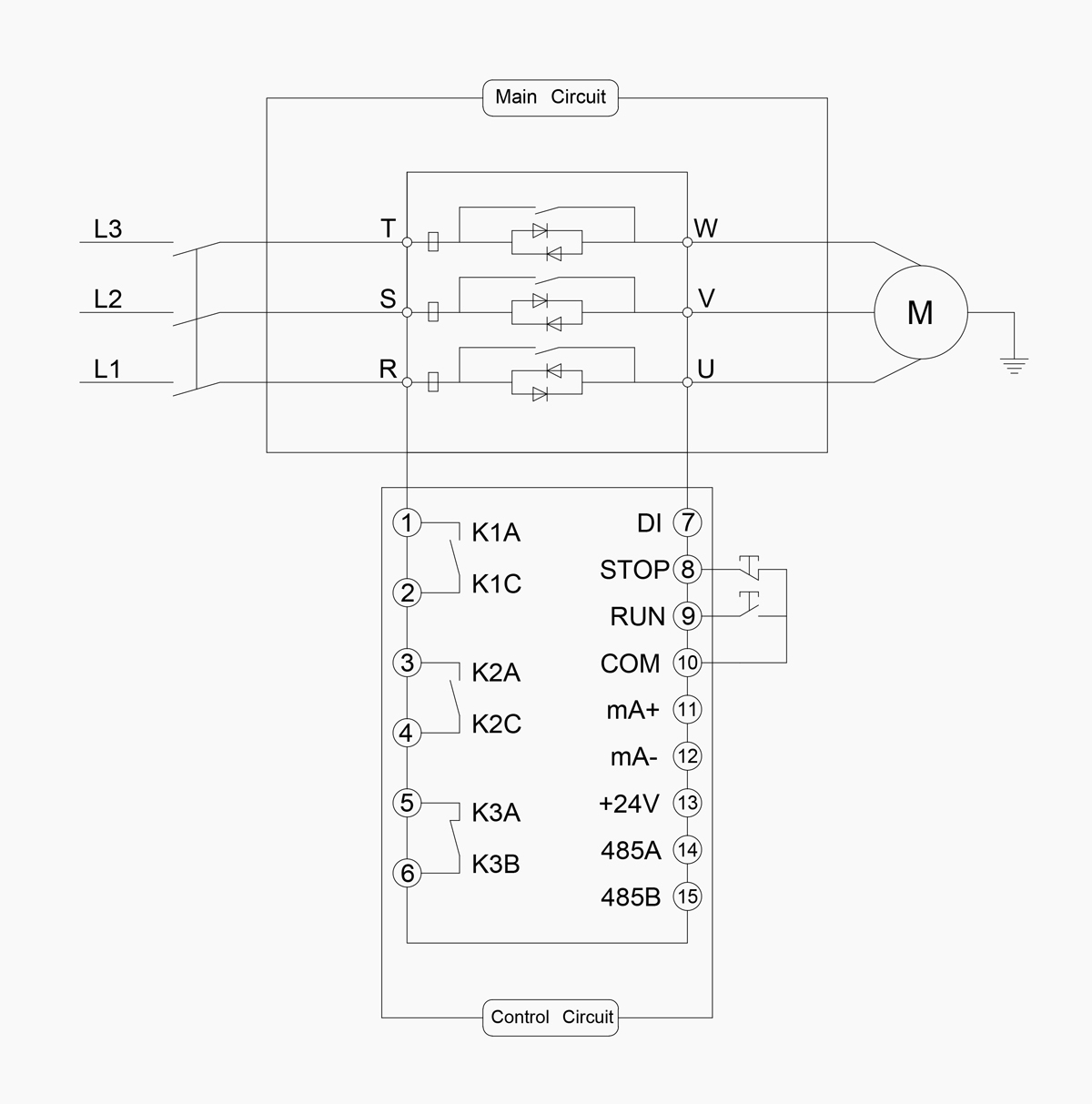

External Wiring
