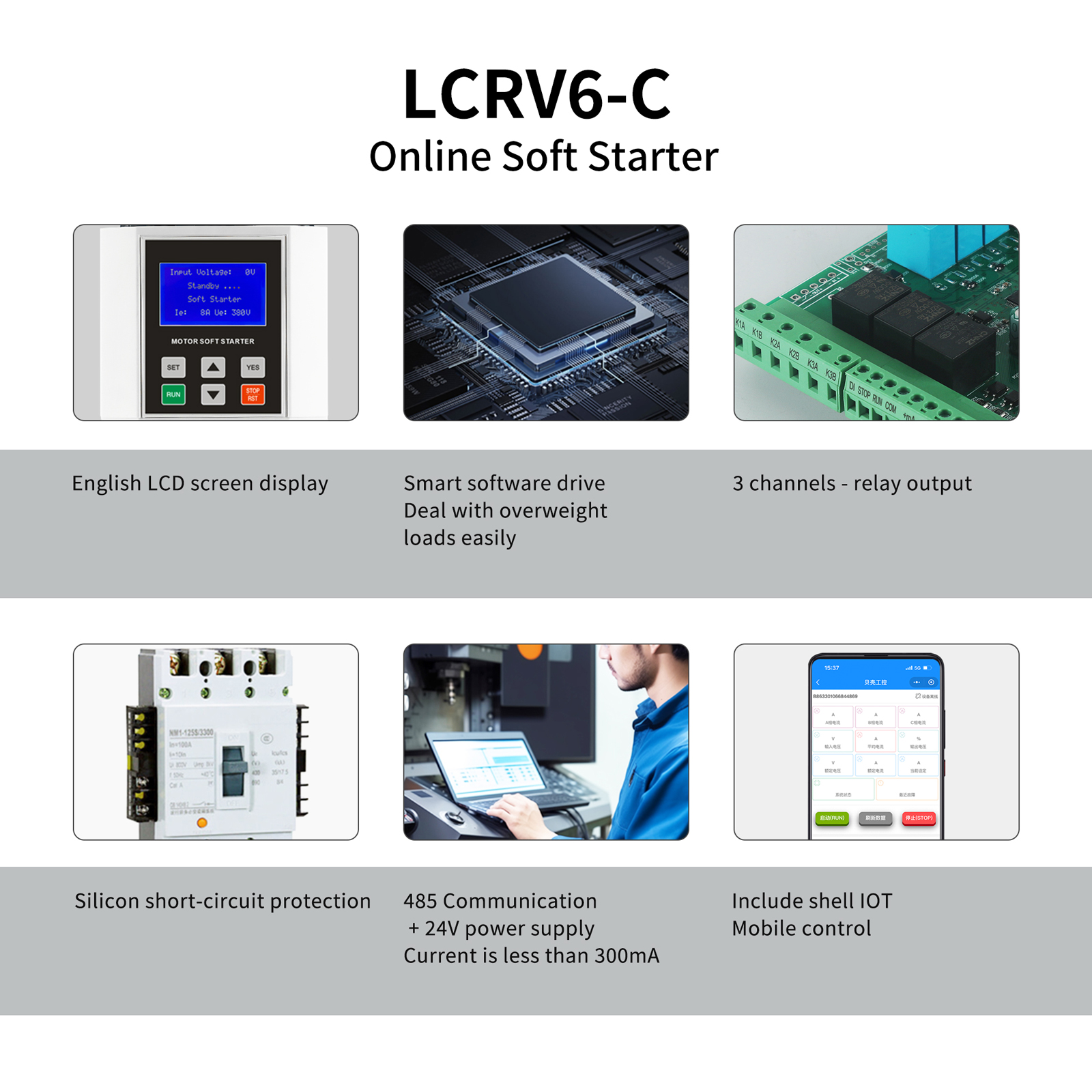

LCRV6-C Series Online Soft Starter
Product overview
LCRV6-C series online soft starter, we not only use the silicon control full-time online structure design of three-input and three-output, but also consider brand new design element to the motor soft starter when we designed it. This type of design brings our customers new visual effects. In the internal of LCRV6-C online motor soft starter, we equip high power air-cooled radiator and high speed axial fan for the motor soft starter to ensure the stable and reliable operation of the soft start for a long time. This type of motor soft start panel does not need external ac contactor. There are many merits of this type of motor online soft starter, such as small size, relatively cheap for the cost of the secondary complete set and deeply loved by our customers. This motor soft starter is one of the best-selling motor soft starter of our company. The shortcoming of LCRV6-C online soft starter is that you must consider the ventilation and heat dissipation in the control panel when using it, and it is only matched with the single motor.
Specification of LCRV6-C Online Soft Starter
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
I-V6-22C |
3.45 |
Frame I Product: 285*150*195 Installation: 255*135 Package: 335*195*235 Carton: 2 or 4pcs/ctn Frame II Product: 370*210*245 Installation: 320*150 Package: 455*260*270 Carton: 2pcs/ctn Frame III Product: 410*300*235 Installation: 375*288 Package: 480*360*310 Carton: 1pc/ctn Frame IV Product: 460*360*255 Installation: 425*325 Package: 560*400*330 Carton: 1pc/ctn Frame V Product: 510*400*275 Installation: 475*352 Package: 630*460*370 Carton: 1pc/ctn Opening dimensions of panel: H140*W95 |
|
2 |
I-V6-30C |
3.45 |
|
|
3 |
I-V6-37C |
3.65 |
|
|
4 |
I-V6-45C |
3.65 |
|
|
5 |
I-V6-55CX |
3.95 |
|
|
6 |
I-V6-75CX |
4.5 |
|
|
7 |
II-V6-90C |
9 |
|
|
8 |
II-V6-115C |
17.2 |
|
|
9 |
I-V6-132C |
17.2 |
|
|
10 |
II-V6-160C |
17.5 |
|
|
11 |
II-V6-185C |
17.5 |
|
|
12 |
II-V6-200C |
17.5 |
|
|
13 |
II-V6-220C |
17.5 |
|
|
14 |
IV-V6-250C |
24 |
|
|
15 |
IV-V6-280C |
24 |
|
|
16 |
IV-V6-320C |
25 |
|
|
17 |
IV-V6-350C |
25 |
|
|
18 |
V-V6-400C |
36 |
|
|
19 |
V-V6-450C |
36 |
|
|
20 |
V-V6-500C |
36 |
Intelligent control
LCRV6-C online motor soft starter with brand new design element that we bring to the market can only match the single motor to use, but the LCRV6-C online motor soft starter can stand up for the centralized control of multi-machine parallel networking to promote the management and operational efficiency of control cabinet.
Reduce the impact
LCRV6-C online motor soft starter can bring about the impact free acceleration of the motor, and effectually reduce the wear of motor and control cabinet in the start-up process, and at the same time extend the life length of the motor and control cabinet.
Lean complete equipment
The motor starting and running, our company adopts the design structure of thyristor full time online, so the control cabinet of LCRV6-C motor soft starter does not need the additional ac contactor to connect. Because of this reason, the volume of LCRV6-C series motor soft starter is small, and the control cabinet is more simple, and at the same time the peripheral expenses is also inexpensive.
Main Technical Parameters
Power range: 22-1250kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V, AC1140V, 60 Hz
Partial Display
External Wiring
