LCRV6-A External Bypass Soft Starter
Product overview
LCRV6-A external bypass soft starter, the internal has not contactor, so in the outside of bypass soft starter, it requires an additional AC contactor to match the rated current of motor. It needs the relay to control the running of bypass contactor to take over the thyristor which has completed the starting task, and supply full voltage for the normal operation of the motor to reduce the heat loss of thyristor, when the motor runs up to the rated speed. The merits of LCRV6-A external bypass soft starter is that the price of it is not expensive, and it can on the basis of the actual needs choose different specifications of bypass contactor, and at the same time it can achieve the operation of many motors controlled by one bypass soft starter. The demerits of LCRV6-A external bypass soft starter is that the installation and wiring are relatively complex, and the secondary complete equipment cost is high and needs more space in the cabinet.
Specification of LCRV6-A External Bypass Soft Starter
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
I-V6-22A |
2.85 |
Frame I Product: 280*145*160 Installation: 240*120 Package: 335*195*220 Carton: 2 or 4pcs/ctn Frame II Product: 410*260*235 Installation: 375*228 Package: 500*275*320 Carton: 1pc/ctn Frame III Product: 460*300*255 Installation: 425*266 Package: 560*340*330 Carton: 1pc/ctn Frame IV Product: 510*400*275 Installation: 475*352 Package: 630*460*370 Carton: 1pc/ctn Opening dimensions of panel: H40*W195 |
|
2 |
I-V6-30A |
2.85 |
|
|
3 |
I-V6-37A |
3.4 |
|
|
4 |
I-V6-45A |
3.4 |
|
|
5 |
I-V6-55A |
3.4 |
|
|
6 |
I-V6-75A |
3.5 |
|
|
7 |
II-V6-90A |
17.15 |
|
|
8 |
II-V6-115A |
17.3 |
|
|
9 |
lI-V6-132A |
17.35 |
|
|
10 |
II-V6-160A |
17.6 |
|
|
11 |
II-V6-185A |
17.6 |
|
|
12 |
II-V6-200A |
17.6 |
|
|
13 |
II-V6-220A |
17.6 |
|
|
14 |
III-V6-250A |
21 |
|
|
15 |
III-V6-280A |
21.35 |
|
|
16 |
III-V6-320A |
21.6 |
|
|
17 |
III-V6-350A |
21.6 |
|
|
18 |
IV-V6-400A |
35.4 |
|
|
19 |
IV-V6-450A |
36 |
|
|
20 |
IV-V6-500A |
36.5 |
Intelligent control
LCRV6-A series external bypass soft starter we introduce to the market, it can achieve the operation of multiple motors controlled by one LCRV6-A bypass motor soft starter, and can sustain the centralized control of multi-machine parallel networking, and at the same time promote the management and operation efficiency of control cabinet.
Reduce the impact
LCRV6-A series external bypass soft starter can achieve the impact-free acceleration of the motor, effectively cut down the motor and equipment wear in the start-up process, and extend the service life of the motor and control cabinet.
Energy conservation and consumption reduction
The current passes through the bypass contactor loop, when the motor is in the normal operation, which can reduce the energy loss of components inside the external bypass soft starter, so this type of external bypass soft starter has a good energy saving effect and can reduce the electricity cost of users.
Main Technical Parameters
Power range: 22-1250kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V, AC1140V, 60 Hz

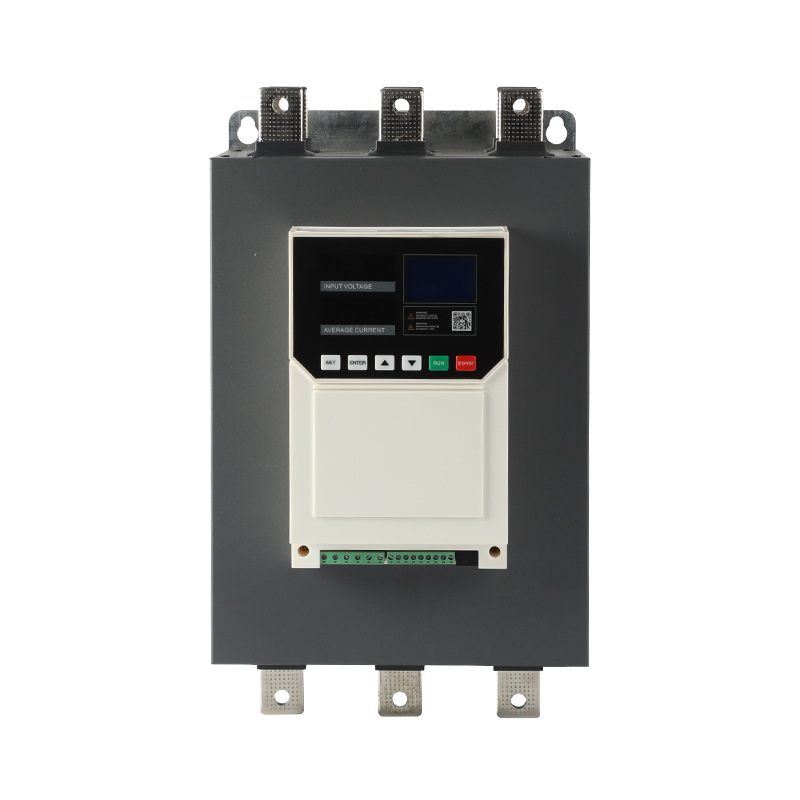

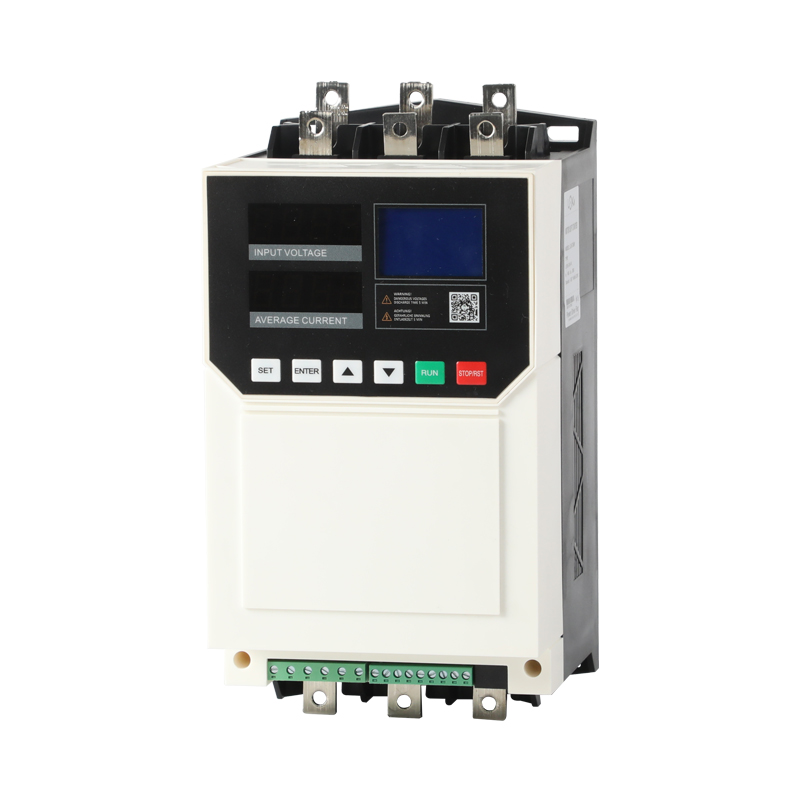

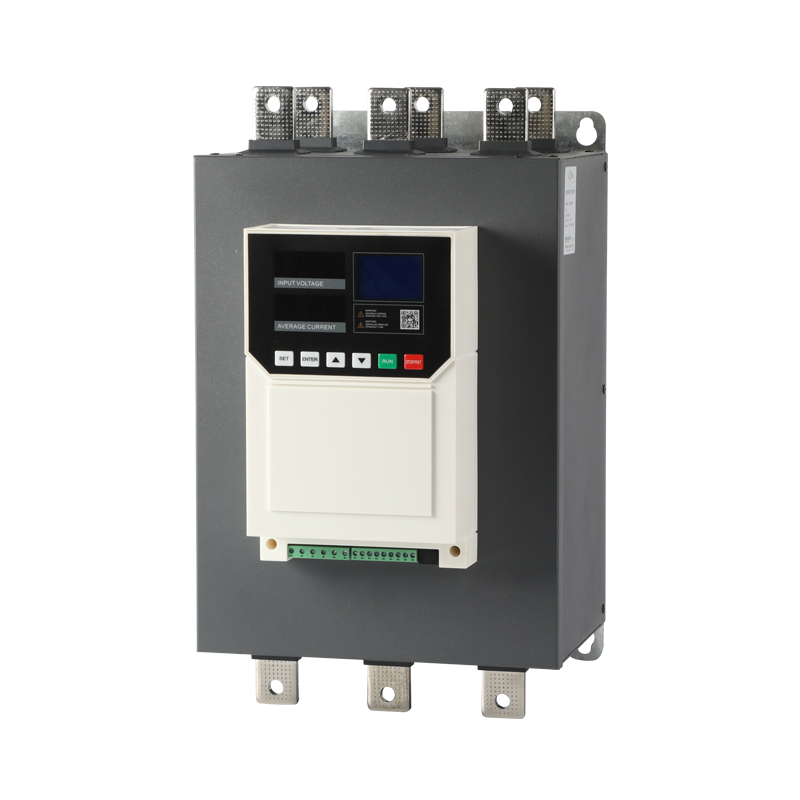

Partial Display

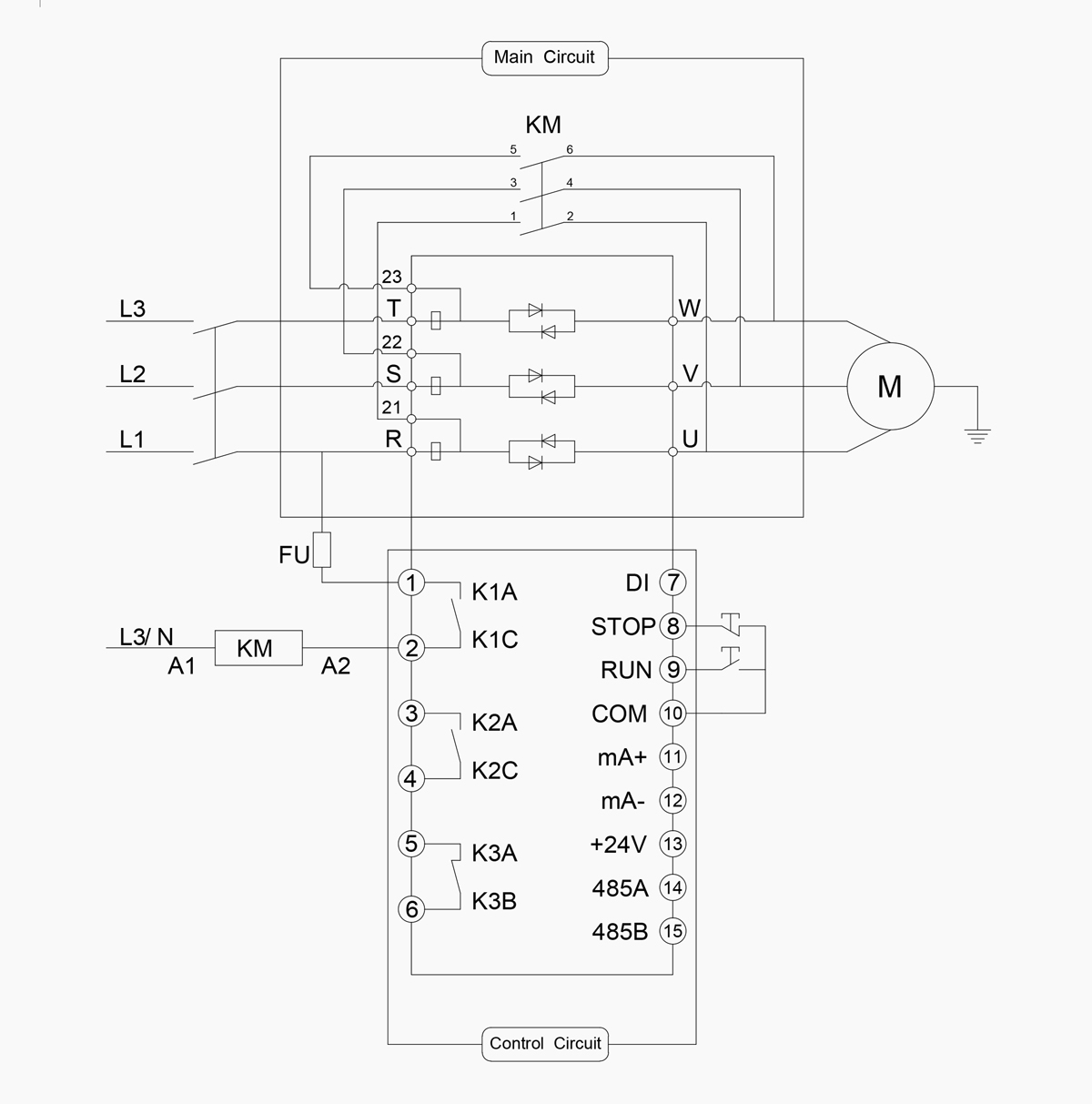

External Wiring
