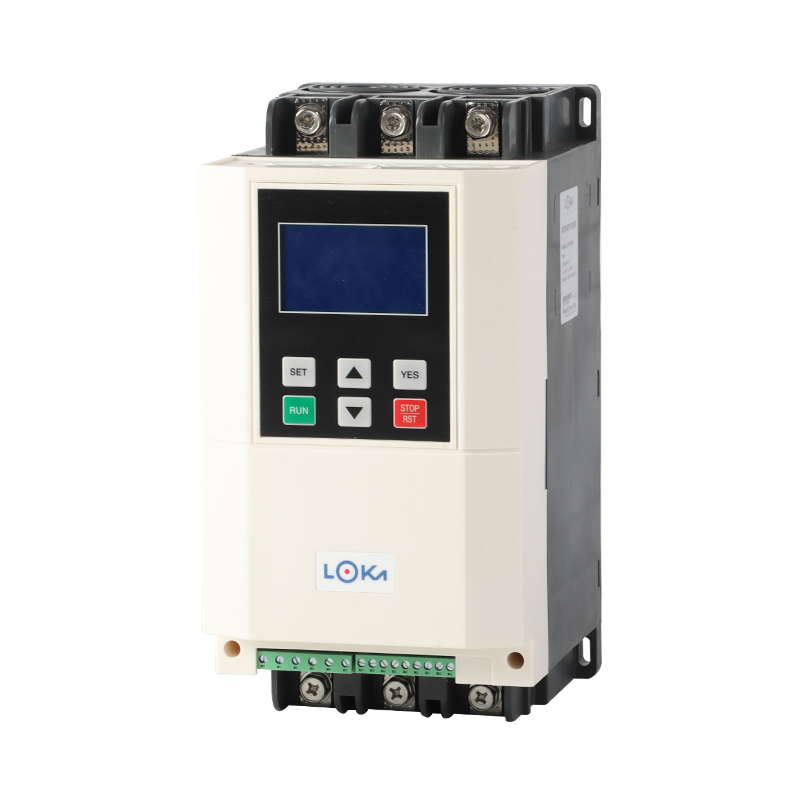

LCRV5-E Built-in Bypass Soft Starter
Product overview
LCRV5-E Built-in bypass soft starter itself is integrated bypass contactor. When the motor reaches the rated speed, LCRV5-E built-in bypass soft starter will through the relay control the running of the inner dc contactor to replace the thyristor that has completed the startup task, and provide full voltage for the normal operation of the motor to reduce the heat loss of thyristor. This type of bypass soft starter price is relatively high, but the installation and wiring are simple, and requires little space of the cabinet. Its disadvantage is that the ventilation and heat dissipation in the cabinet should be properly considered when using it, and can only be matched with a single motor to use.
Specification of LCRV5-E Built-in Bypass Soft Starter
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
I-LCRV5-22E |
5.3 |
Frame I
Product: 285*150*195 Installation: 255*135 Package: 335*195*235 Carton: 2 or 4pcs/ctn Frame II Product: 370*210*245 Installation: 325*150 Package: 455*260*300 Carton: 2pcs/ctn Frame III Product: 450*260*255 Installation: 475*228 Package: 590*315*350 Carton: 1pc/ctn Frame IV Product: 525*300*275 Installation: 550*266 Package: 685*345*385 Carton: 1pc/ctn Frame V Product: 570*400*295 Installation: 595*352 Package: 760*450*40 Carton: 1pc/ctn Panel opening size : H112*W88mm |
|
2 |
I-LCRV5-30E |
5.3 |
|
|
3 |
I-LCRV5-37E |
5.35 |
|
|
4 |
I-LCRV5-45E |
5.45 |
|
|
5 |
I-LCRV5-55E |
5.5 |
|
|
6 |
I-LCRV5-75E |
5.7 |
|
|
7 |
II-LCRV5-90E |
9.5 |
|
|
8 |
II-LCRV5-115E |
10.35 |
|
|
9 |
II-LCRV5-132E |
22.6 |
|
|
10 |
III-LCRV5-160E |
22.7 |
|
|
11 |
III-LCRV5-185E |
22.7 |
|
|
12 |
III-LCRV5-200E |
22.75 |
|
|
13 |
III-LCRV5-220E |
22.75 |
|
|
14 |
IV-LCRV5-250E |
33 |
|
|
15 |
IV-LCRV5-280E |
33 |
|
|
16 |
IV-LCRV5-320E |
33.05 |
|
|
17 |
IV-LCRV5-350E |
33.05 |
|
|
18 |
V-LCRV5-400E |
50 |
|
|
19 |
V-LCRV5-450E |
50 |
|
|
20 |
V-LCRV5-500E |
50 |
Intelligent control
LCRV5-E built-in bypass soft starter can realize the operation of multiple motors controlled by one built-in bypass motor soft starter, and support the centralized control of multi-machine parallel networking, and improve the management and operation efficiency of equipment.
Reduce the impact
LCRV5-E built-in bypass soft starter can realize the no-impact acceleration of the motor, effectively reduce the motor and equipment wear in the starting process, and prolong the service life of the motor and equipment.
Energy conservation and consumption reduction
In the normal operation of the motor, the current of the LCRV5-E built-in bypass soft starter passes through the bypass contactor loop, which cuts down the energy loss of components inside the LCRV5-E built-in bypass motor soft starter, thus it has a good energy saving effect and can reduce the electricity cost of enterprises.
Main Technical Parameters
Power range: 22-1250kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V, AC1140V, 60 Hz
Partial Display
External Wiring
