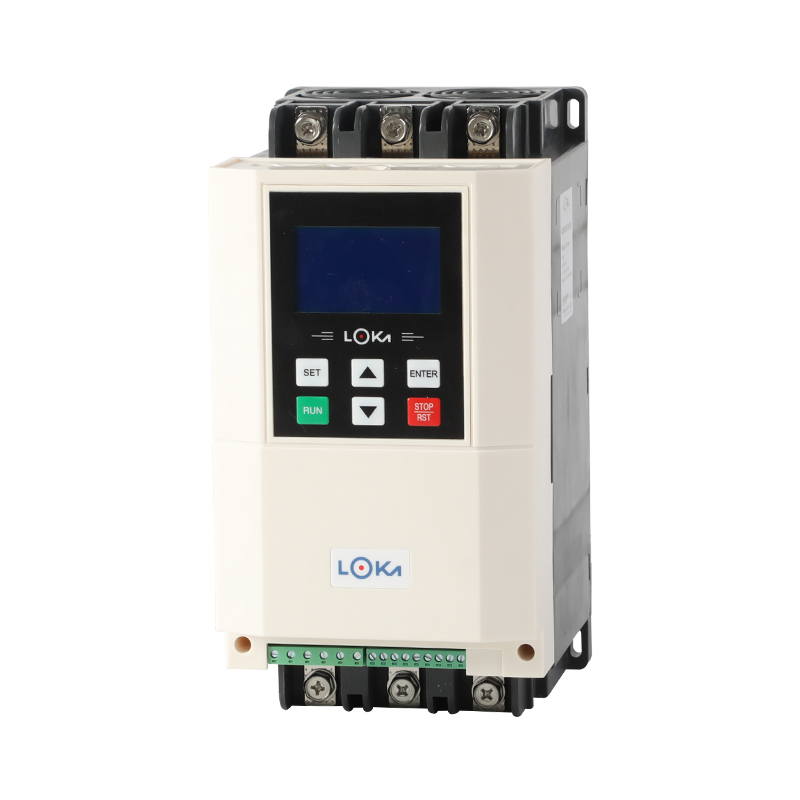

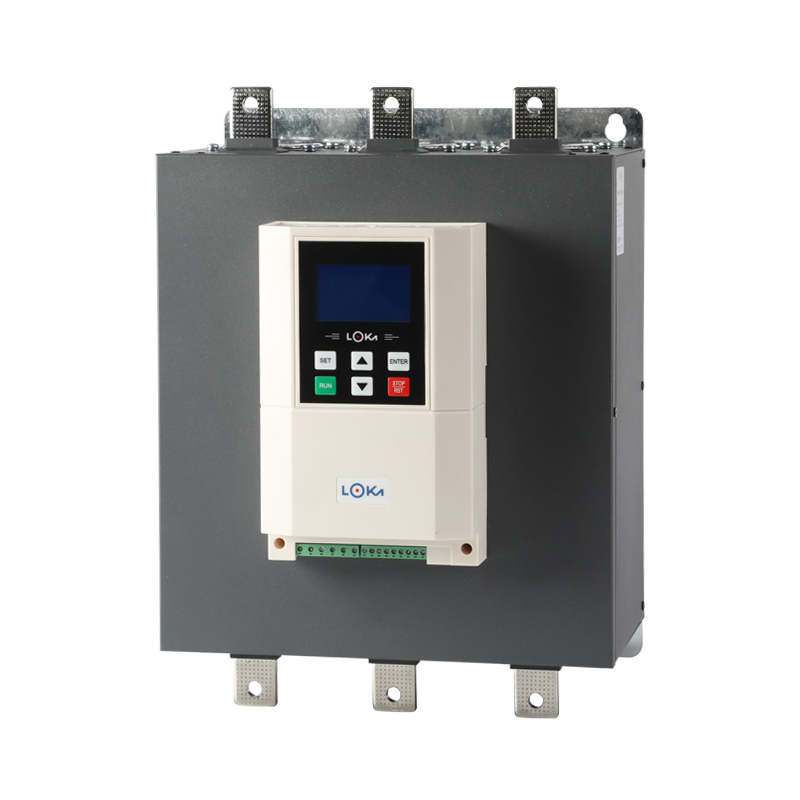

LCRV5-C Series Online Soft Starter
Product overview
LCRV5-C online motor soft starter we launched to the market adopts the three-in and three-out structure design of thyristor control full-time online. Inner of the motor soft starter, we adopt big power air cooling radiator and high speed axial flow fan to guarantee the stable and reliable operation of motor online soft starter for long time. This control panel does not need extra ac contactor when use this type of motor online soft starter. The merits of this type motor soft starter are small size, cheap price for the secondary complete equipment, and deeply loved by our users. This type of online motor soft starter also is one of the best-selling soft starter of our company. The weak point of this online motor soft starter is that we need to consider the ventilation and heat dissipation in the panel when using it, and it only can be matched with the single motor.
Specification of LCRV5-C Online Soft Starter
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
I-V5-22C |
3.45 |
Frame I
Product: 285*150*195 Installation: 255*135 Package: 335*195*235 Carton: 2 or 4pcs/ctn Frame II Product: 370*210*245 Installation: 320*150 Package: 455*260*270 Carton: 2pcs/ctn Frame III Product: 410*300*235 Installation: 375*288 Package: 480*360*310 Carton: 1pc/ctn Frame IV Product: 460*360*255 Installation: 425*325 Package: 560*400*330 Carton: 1pc/ctn Frame V Product: 510*400*275 Installation: 475*352 Package: 630*460*370 Carton: 1pc/ctn Opening dimensions of panel: H112*W88 |
|
2 |
I-V5-30C |
3.45 |
|
|
3 |
I-V5-37C |
3.65 |
|
|
4 |
I-V5-45C |
3.65 |
|
|
5 |
I-V5-55CX |
3.95 |
|
|
6 |
I-V5-75CX |
4.50 |
|
|
7 |
II-V5-90C |
9 |
|
|
8 |
III-V5-115C |
17.2 |
|
|
9 |
III-V5-132C |
17.2 |
|
|
10 |
III-V5-160C |
17.5 |
|
|
11 |
III-V5-185C |
17.5 |
|
|
12 |
III-V5-200C |
17.5 |
|
|
13 |
III-V5-220C |
17.5 |
|
|
14 |
IV-V5-250C |
24 |
|
|
15 |
IV-V5-280C |
24 |
|
|
16 |
IV-V5-320C |
25 |
|
|
17 |
IV-V5-350C |
25 |
|
|
18 |
V-V5-400C |
36 |
|
|
19 |
V-V5-450C |
36 |
|
|
20 |
V-V5-500C |
36 |
Intelligent control
Our LCRV5-C online motor soft starter can match the single motor to use, and the motor soft starter also can sustain the centralized control of multi-machine parallel networking to make the management and operating efficiency of equipment more better.
Reduce the impact
This motor soft starter can achieve the impact-free acceleration of the motor, and effectively reduce the wear of motor and equipment in the starting process, and extend the life length of the motor and equipment.
Lean complete equipment
The motor starting and running, we use the thyristor full-time online structure design, so the complete equipment does not need the extra ac contactor to connect. This type of online motor soft starter volume is small and the control panel is simple, and the peripheral expenses is economic.
Main Technical Parameters
Power range: 22-1250kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V, AC1140V, 60 Hz
Partial Display
External Wiring
