LCR-VM Linglong Series Online Soft Starter Panel
Product overview

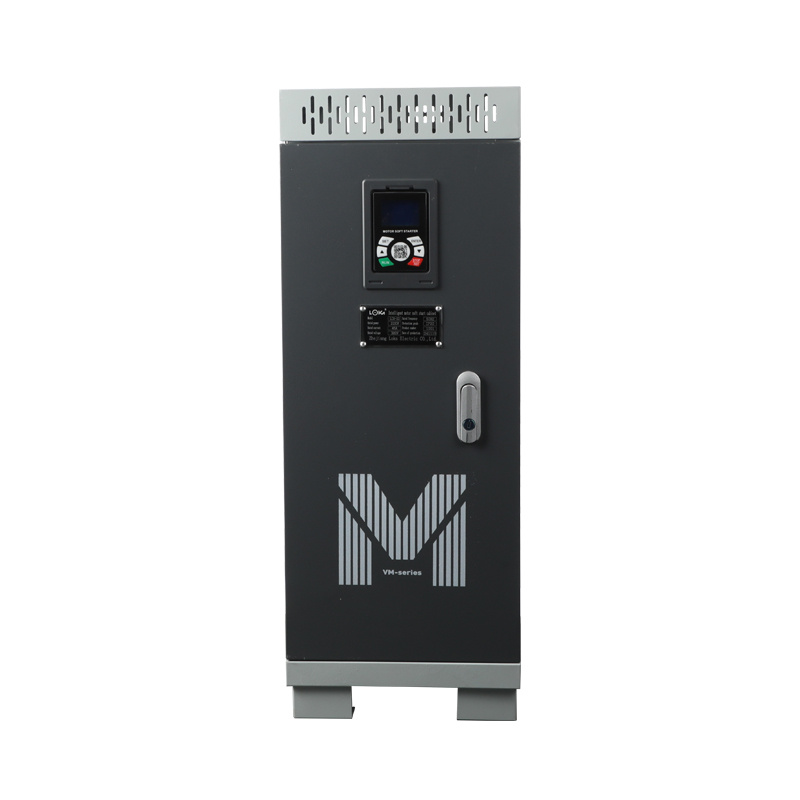

1. New appearance design, English LCD screen display, VM logo highlights its personality.
2. Choose online soft starter for the control cabinet, small and powerful, convenient after-sales.
3. 64-bit singlechip + core algorithm, large driving torque, deal with overloaded equipment easily.
4. Control power supply AC100-500V voltage design, more stable and reliable, adapt to more fields.
5. With the motor full time super protection function, such as input/output missing, over/underload, over/undervoltage, instantaneous overcurrent, three-phase imbalance blocking, phase sequence detection, start timeout, frequent start and thyristor overheating.
6. Built-in standard 485 communication, 0-20 mA or 4-20 mA.
7. Built-in standard 1-way programmable relay output, can achieve custom output of many functions (see internal parameters for details).
8. Built-in 1 piece D1 programmable terminal, can achieve more functional applications, such as fault reset (NO), instantaneous stop protection/external fault (NC) water shortage protection (NO), power-on startup ( two wires start-stop control ) and jog control.
9. Can customize shell cloud function, support mobile and computer terminal parameter setting and start-stop control.
Specification of LCR-VM Linglong Series Online Soft Starter Panel
|
No. |
Specification |
Physical Dimension/mm |
Package weight/kg |
|
1 |
5.5-18.5kW |
450*300*200 (iron box) |
6.7 |
|
2 |
5.5-18.5kW |

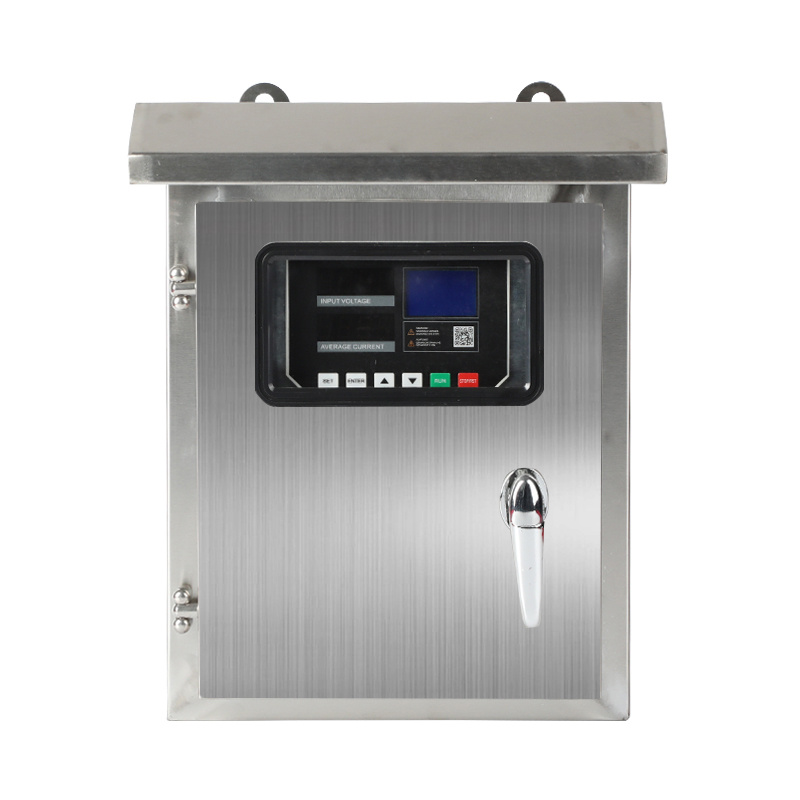

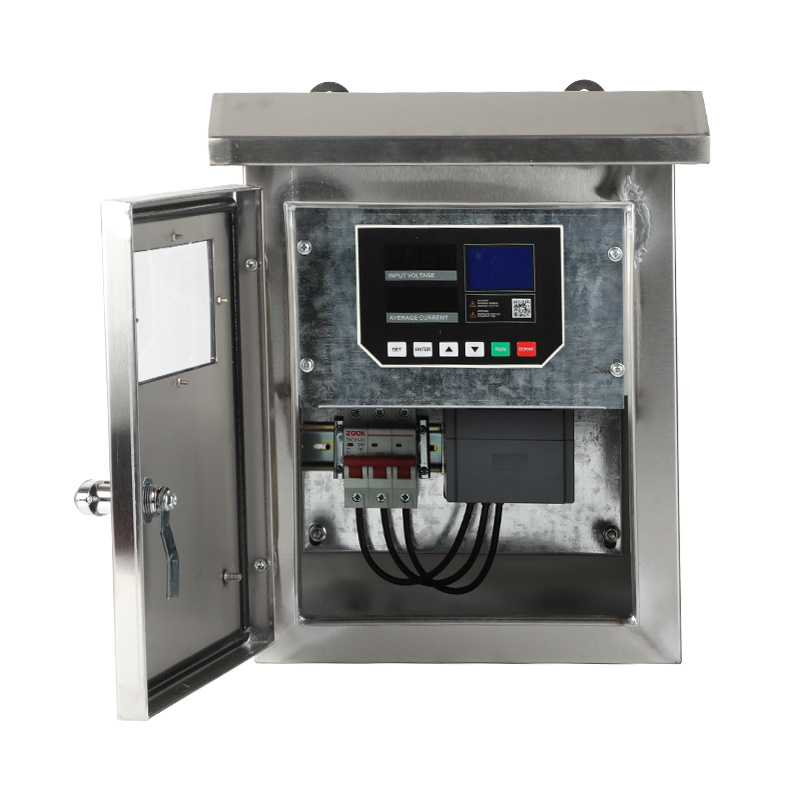

450*300*200 (stainless steel box) |
5.5 |
|
3 |
22-75kW |
750*280*280 |
13.6 |
|
4 |
90-115kW |
850*350*330 |
21.6 |
|
5 |
132-220kW |
1100*450*380 |
39 |
|
6 |
250-320kW |
1250*520*400 |
49.5 |
Intelligent control
Reduce the impact
Energy conservation and consumption reduction
Main Technical Parameters
Power range: 5.5-320kw, 50/60Hz
Voltage class: AC220V, AC380V, AC480V, AC690V, AC1140V
External Wiring
