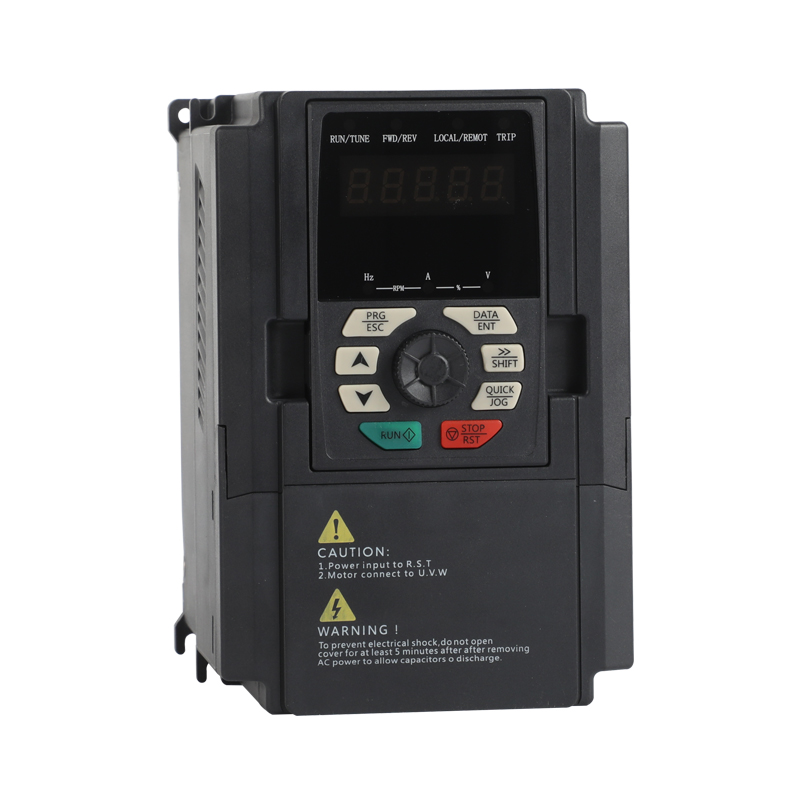

CPF9000-H High Performance Vector Variable Frequency Drive
Product overview
CPF9000-H high performance variable frequency drive, the whole series of CPF9000-H high performance VFD adopts module structure design and electrolytic capacitor, and choose high performance IGBT module for this series of vfd. Besides, when we design the CPF9000-H high performance VFD, we consider to use high-power air cooled radiator and high-speed axial flow fan to guarantee that it has long time stable and reliable operation. CPF9000-H series high performance VFD also can achieve the stepless speed regulation of motor and equipment, and at the same time realize constant pressure water supply for the motor and equipment etc. This series vfd has the function of big starting torque, small current, low power grid capacity requirement and good energy saving effect, and therefor it can decrease the cost of electricity for the users. To sum up, CPF9000-H high performance variable frequency drive is the best option for motor start-up control products.
Specification of CPF9000-H High Performance Vector Variable Frequency Drive
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
C1-1.5kW |
/ |
C1 Product: 186*126*171 Installation: 175*115 Package: 245*130*180 Carton: 8pcs/ctn C2 Product: 256*146*185 Installation: 243*131 Package: 250*140*200 Carton: 4 or 8 pcs/ctn C3 Product: 320*170*211 Installation: 303*151 Package: 290*165*210 Carton: 6pcs/ctn Opening dimensions of panel: H128.5*W75.8 |
|
2 |
C1-2.2kW |
/ |
|
|
3 |
C1-4.0kW |
/ |
|
|
4 |
C1-5.5kW |
/ |
|
|
5 |
C2-7.5kW |
/ |
|
|
6 |
C2-11kW |
/ |
|
|
7 |
C3-15kW |
/ |
|
|
8 |
C3-18.5kW |
/ |
|
|
9 |
C3-22kW |
/ |
|
|
10 |
C4-30kW |
/ |
|
|
11 |
C4-37kW |
/ |
|
|
12 |
C5-45kW |
/ |
|
|
13 |
C6-55kW |
/ |
|
|
14 |
C6-75kW |
/ |
|
|
15 |
C7-90kW |
/ |
|
|
16 |
C7-110kW |
/ |
|
|
17 |
C8-132kW |
/ |
|
|
18 |
C8-160kW |
/ |
|
|
19 |
C8-185kW |
/ |
|
|
20 |
C9-200kW |
/ |
|
|
21 |
C9-220kW |
/ |
|
|
22 |
C9-250kW |
/ |
|
|
23 |
C10-280kW |
/ |
|
|
24 |
C11-315kW |
/ |
|
|
25 |
C11-355kW |
/ |
|
|
26 |
C12-400kW |
/ |
|
|
27 |
C12-450kW |
/ |
|
|
28 |
C12-500kW |
/ |
Intelligent control
For the CPF9000-H high performance vector variable frequency drive, our company advice the user to match the single motor to use. About this type of high performance VFD, it can march multi-machine centralized control of parallel networking, because of this function of the frequency converter, the CPF9000-H high performance VFD can promote the management and operation efficiency of the control panel.
Stepless speed regulation
For the CPF9000-H high performance vector VFD, when we design it, we consider the function that it can achieve the acceleration and deceleration of the motor without impact within the specified time, so it can effectually cut down the wear of the motor and control panel during the start process, and it can lengthen the service life of the motor and control panel.
Energy saving and consumption reduction
The starting current of CPF9000-H high performance vector frequency inverter will not exceed 1.5 times of the rated current, and this series universal vector frequency inverter request low capacity of the power grid. Because the output current of frequency converter is greater than the input current of it, CPF9000-H high performance vector frequency inverter also has the virtues of energy saving and consumption reduction and reducing the cost of user electricity.
Main Technical Parameters
Power range: 0.75-500kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V

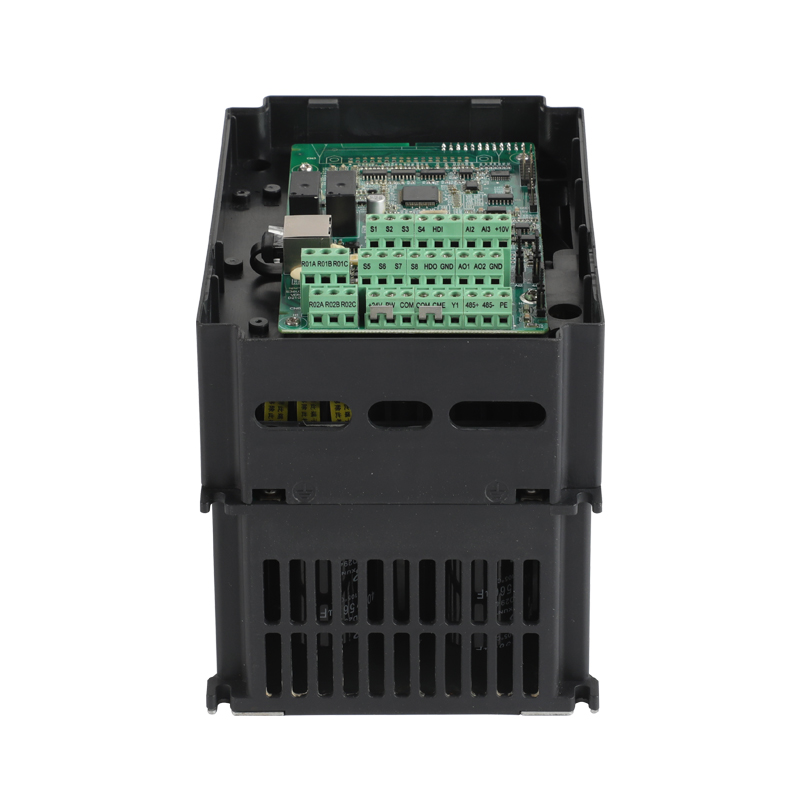

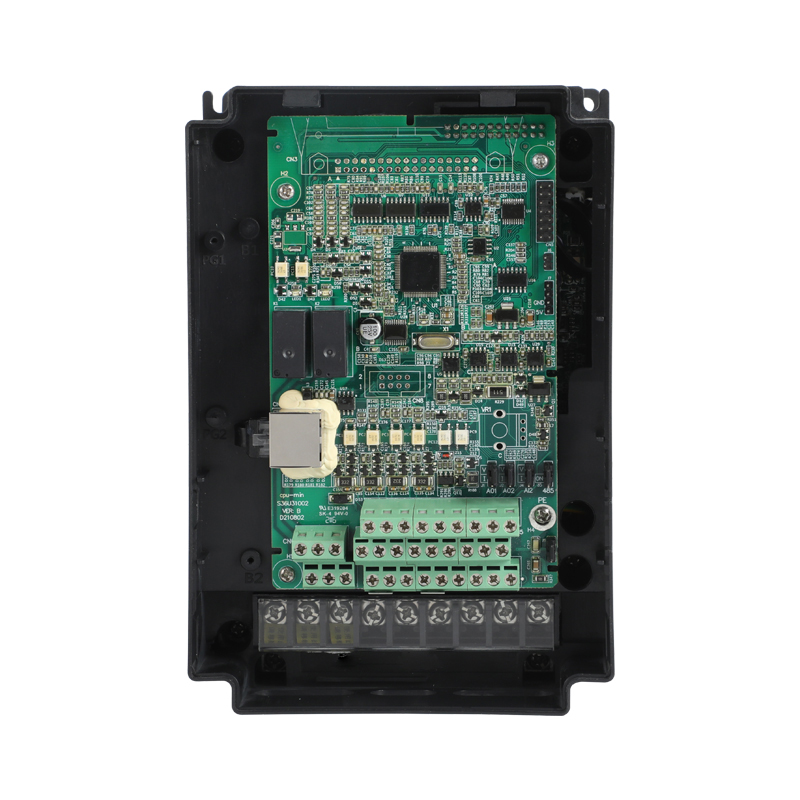

Partial Display
