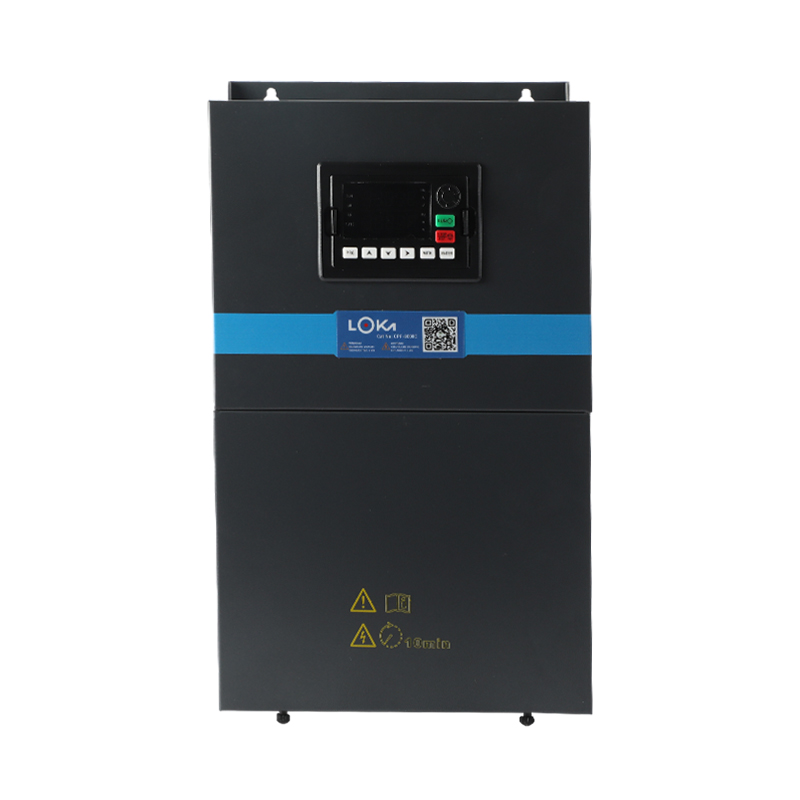

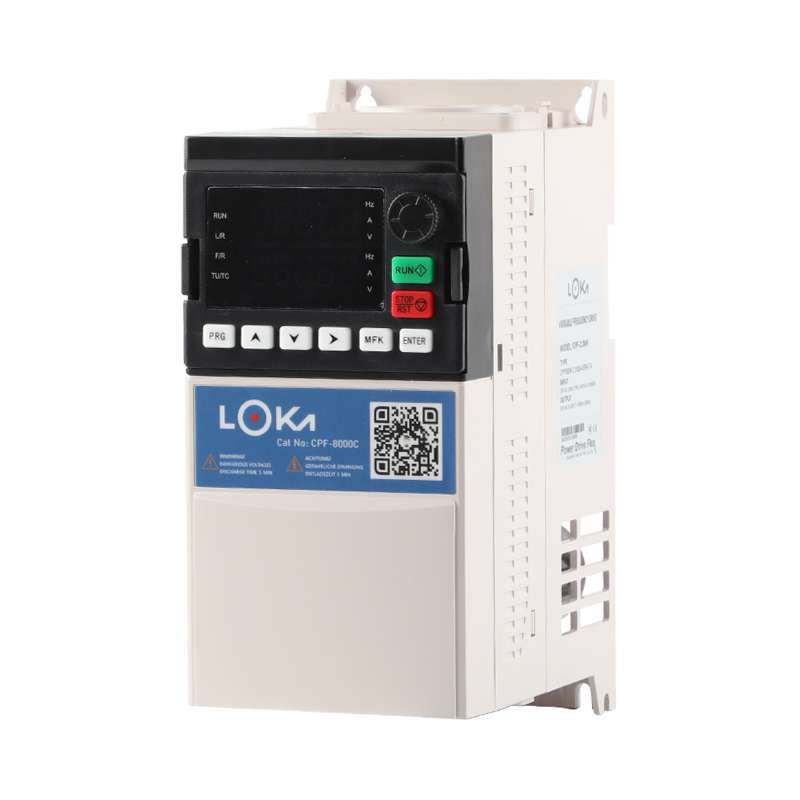

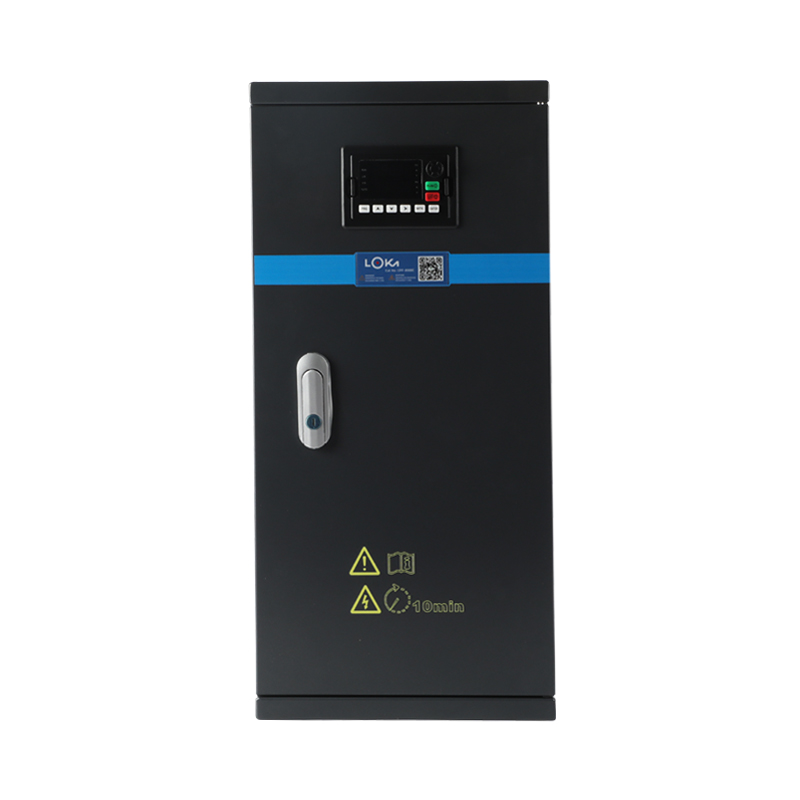

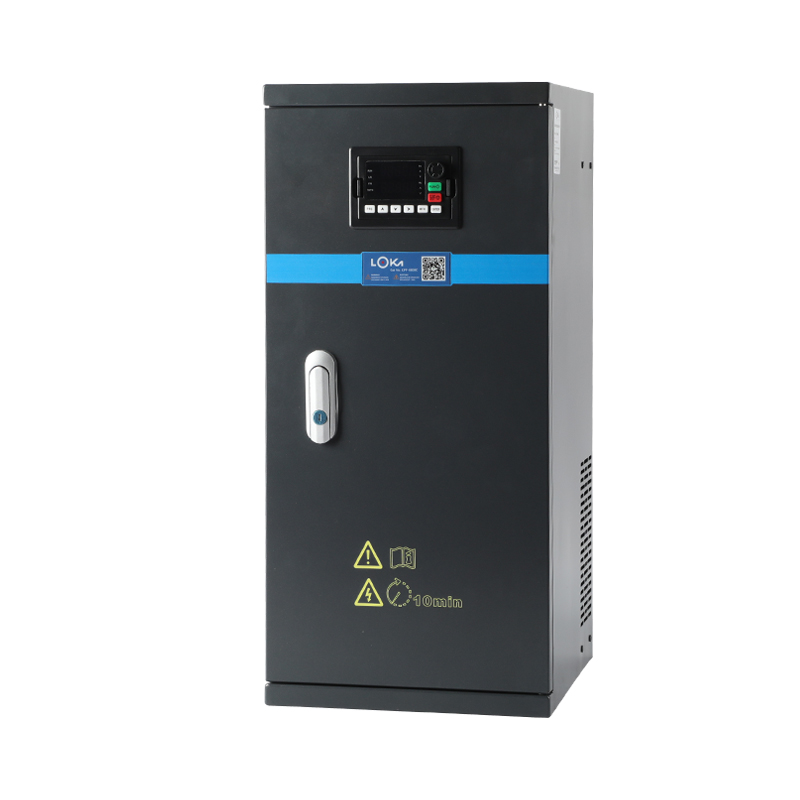

CPF8000-C Universal Vector Variable Frequency Drive
Product overview
CPF8000-C universal vector VFD, we use modular structure design, high grade IGBT single tube and electrolytic capacitor for the whole series variable frequency drive. The inside of universal vector variable frequency drive, we use the high-power air cooled radiator and high-speed axial flow fan to guarantee it has long time stable and reliable operation. This type of universal vector VFD can bring about the application of motor and equipment stepless speed regulating, constant pressure water supply and other environments. For this type of universal vector VFD, it has the advantages of large starting torque, small current, low power grid capacity requirement and good energy saving effect, thus it can cut down the cost of electricity for enterprises and it is the best option for motor starting control products.
Specification of CPF8000-C Universal Vector Variable Frequency Drive
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
C1-1.5kW |
1.35 |
C1 Product: 197.2*89.6*139 Installation: 187*74 Package: 245*130*180 Carton: 8pcs/ctn C2 Product: 202*102*162 Installation: 190*90 Package: 250*140*200 Carton: 4 or 8 pcs/ctn C3 Product: 242.5*125*170 Installation: 228*108 Package: 290*165*210 Carton: 6pcs/ctn C4 Product: 297*165*206 Installation: 278*147 Package: 345*205*245 Carton: 2 or 4 pcs/ctn C5 Product:420*245*210 Installation: 405*184 Package: 470*310*275 Carton: 2pcs/ctn C6 Product: 425*255*250 Installation: 410*194 Package: 490*320*315 Carton: 1pc/ctn C7 Product: 580*270*300 Installation: 565*200 Package: 655*340*385 Carton: 1pc/ctn C8 Product: 660*320*305 Installation: 640*200 Package: 700*360*350 Carton: 1pc/ctn Opening dimensions of panel: H68*W98 |
|
2 |
C1-2.2kW |
1.35 |
|
|
3 |
C2-4.0kW |
1.95 |
|
|
4 |
C2-5.5kW |
1.95 |
|
|
5 |
C3-7.5kW |
3.1 |
|
|
6 |
C3-11kW |
3.15 |
|
|
7 |
C4-15kW |
5.5 |
|
|
8 |
C4-18.5kW |
5.5 |
|
|
9 |
C4-22kW |
5.5 |
|
|
10 |
C5-30kW |
13.2 |
|
|
11 |
C5-37kW |
13.55 |
|
|
12 |
C6-45kW |
21.7 |
|
|
13 |
C7-55kW |
26.45 |
|
|
14 |
C7-75kW |
26.8 |
|
|
15 |
C8-90kW |
40 |
|
|
16 |
C8-110kW |
40 |
|
|
17 |
C9-132kW |
63.85 |
|
|
18 |
C9-160kW |
64.55 |
|
|
19 |
C9-185kW |
65.65 |
|
|
20 |
C10-200kW |
101.65 |
|
|
21 |
C10-220kW |
103.3 |
|
|
22 |
C10-250kW |
105 |
|
|
23 |
C11-280kW |
109.6 |
|
|
24 |
C12-315kW |
113.5 |
|
|
25 |
C12-355kW |
115 |
|
|
26 |
C13-400kW |
155.5 |
|
|
27 |
C13-450kW |
160 |
|
|
28 |
C13-500kW |
165 |
Intelligent control
For the CPF8000-C universal vector variable frequency drive, we suggest to match the single motor to use. About this type of universal vector VFD, it can sustain multi-machine centralized control of parallel networking thus it can promote the management and operation efficiency of the control cabinet.
Stepless speed regulation
For the CPF8000-C universal vector VFD, it can achieve the acceleration and deceleration of the motor without impact within the specified time, effectually cut down the wear of the motor and control cabinet during the start process, and can prolong the service life of the motor and control cabinet.
Energy saving and consumption reduction
The starting current of CPF8000-C series universal vector variable frequency drive will not exceed 1.5 times of the rated current, and this series universal vector VFDs need low capacity of the power grid. CPF8000-C universal vector VFD has the advantages of energy saving and consumption reduction and reducing the cost of enterprise electricity because the output current of VFD is greater than the input current of it.
Main Technical Parameters
Power range: 0.75-500kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V, AC690V
Partial Display
