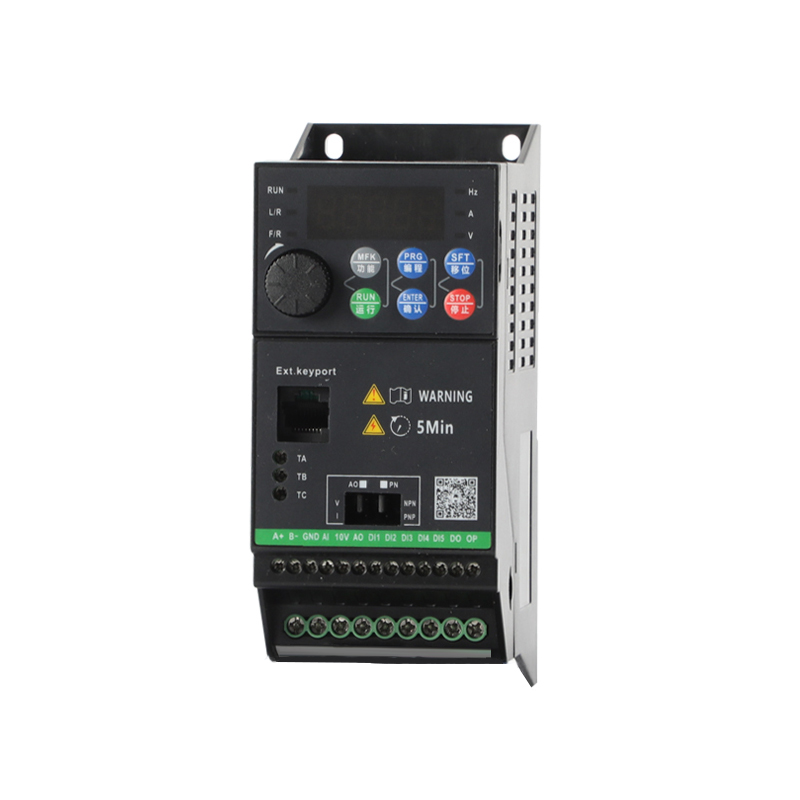

CPF3000-M Intelligent Mini Variable Frequency Drive
Product overview
CPF3000-M intelligent mini variable frequency drive, the whole series adopts modular structure design, the selection of high-quality IGBT single tube and electrolytic capacitor. The internal of mini VFD adopts the high power air cooled radiator and high speed axial flow fan to ensure it long time stable and reliable operation. It can realize the application of motor and equipment stepless speed regulation, constant pressure water supply and other occasions. For the mini VFD, it has the merits of large start torque, small current, low grid capacity requirement and good energy saving effect, so it can reduce the cost of electricity for enterprises and is the best choice for motor starting control products.
Specification of CPF3000-M Intelligent Mini Variable Frequency Drive
|
No. |
Specification |
Package weight/kg |
Size information/mm |
|
1 |
C1-0.75kW/220V |
0.95 |
C1 Product: 164*68*112 Installation: 150*52 Package: 207*111*168 Carton: 2pcs/ctn CTN size: 575*430*355 |
|
2 |
C1-1.5kW/220V |
0.95 |
|
|
3 |
C1-0.75kW/380V |
0.95 |
|
|
4 |
C1-1.5kW/380V |
0.95 |
|
|
5 |
C1-2.2kW/380V |
0.95 |
|
|
6 |
C2-4.0kW/380V |
/ |
|
|
7 |
C2-5.5kW/380V |
/ |
|
|
8 |
C3-7.5kW/380V |
/ |
|
|
9 |
C3-11kW/380V |
/ |
Intelligent control
It is suggested to match a single motor to use. It supports multi-machine centralized control of parallel networking so that it can improve the management and operation efficiency of equipment.
Stepless speed regulation
Realize the acceleration and deceleration of the motor without impact within the specified time, effectively reduce the wear of the motor and equipment during the start-up process, and extend the service life of the motor and equipment.
Energy saving and consumption reduction
The starting current will not exceed 1.5 times of the rated current, which requires low capacity of the grid.
It has the merits of energy saving and consumption reduction and reducing the cost of enterprise electricity because output current is greater than input current.
Main Technical Parameters
Power range: 0.75-11kw
Voltage class: 380v ± 15% 50 Hz
Customized voltage: AC220V, AC480V
Partial Display
