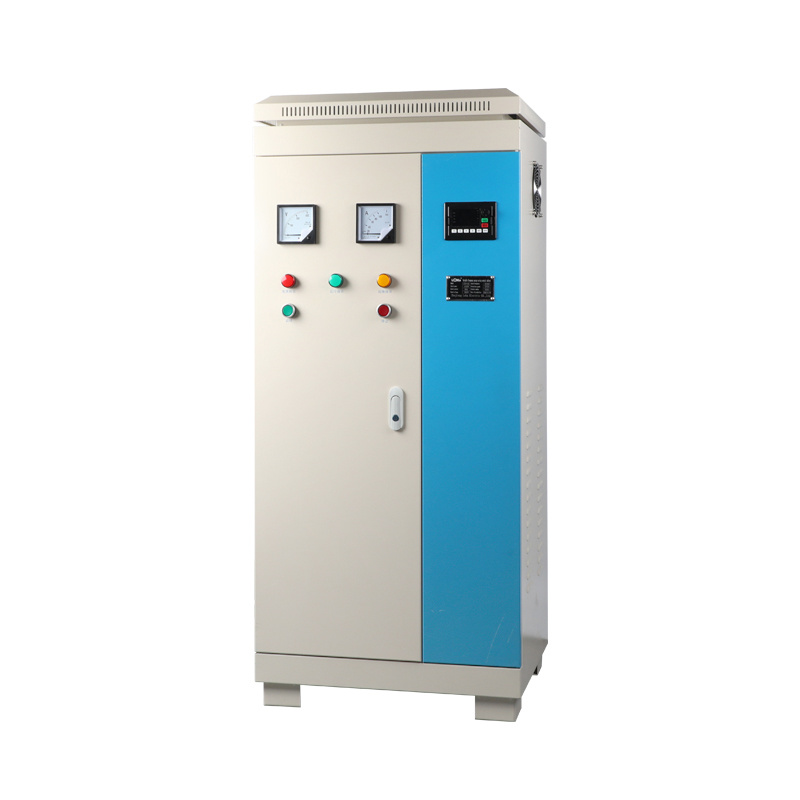

CPF-8000 Xiangyun Series Heavy Load Vector VFD Control Panel
Product overview

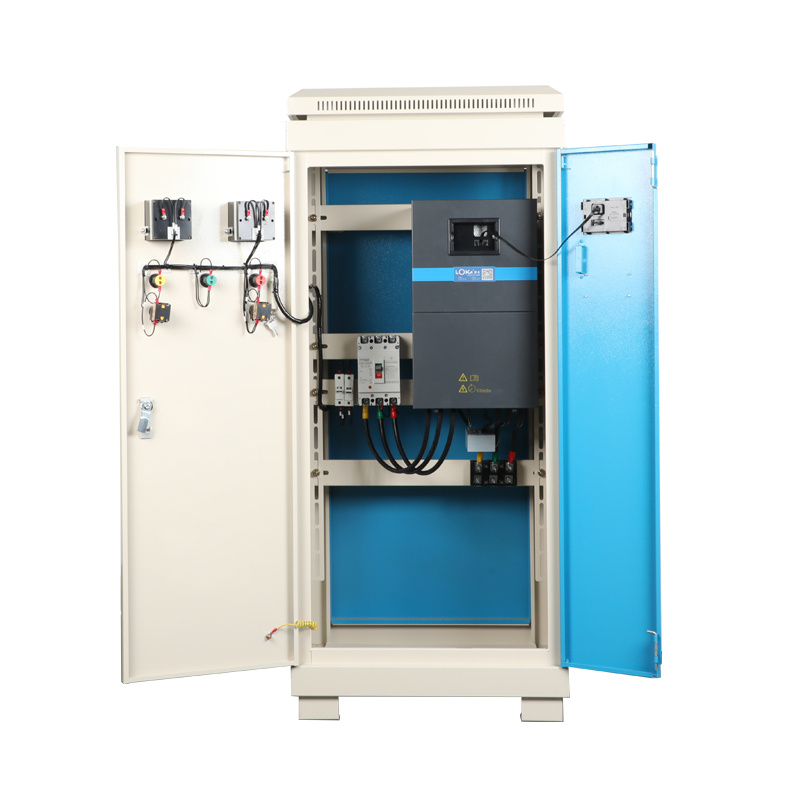

1. Choose Baiyun control cabinet and high quality MCCB and the main circuit selects high quality copper busbar.
2. Adopt module machine for full series VFD control cabinet. Achieve 100% torque at 0.25Hz, so it can cope with overload equipment easily.
3. Built-in standard 485 communication.
4. Built-in standard 2 channels AI input 0-10v or 4-20mA. Built-in standard 2 channels A0 output 0-10v or 4-20mA.
5. Built-in standard 2 channels programmable relay output.
6. Built-in standard 2 channels open circuit, collector output.
7. Built-in multi-function terminal 5-7pcs, can realize 16 levels of speed.
8. Built-in multiple application macros such as constant pressure water supply, fire patrol inspection, numerical control machine and spindle carving. Can achieve constant pressure water supply ( one by five ), and do not need to add extra water supply controller.
9. Can customize shell cloud function, support mobile and computer terminal parameter setting and start-stop control.
Specification of CPF-8000 Xiangyun Series Heavy Load Vector VFD Control Panel
|
No. |
Specification |
Physical Dimension/mm |
Package weight/kg |
|
1 |
0.75-5.5kW |
300*400*250 |
8.3 |
|
2 |
7.5-11kW |
400*500*250 |
12.5 |
|
3 |
15-22kW |
1000*420*380 |
/ |
|
4 |
30-45kW |
1250*550*450 |
/ |
|
5 |
55-75kW |
1450*550*450 |
/ |
|
6 |
90-115kW |
1500*650*500 |
/ |
|
7 |
132-185kW |
1750*700*500 |
/ |
|
8 |
200-315kW |
2200*800*600 |
/ |
Intelligent control
Reduce the impact
Energy conservation and consumption reduction
Main Technical Parameters
Power range: 0.75-710kw, 50/60Hz
Voltage class: AC220V, AC380V, AC480V, AC690V
